Get a custom quote for our industry-leading pallet feet, metal pressings, and cubicle hardware. Our team are ready to deliver tailored solutions backed by decades of expertise.
Our Range of Pallet Feet & Nesting Plugs
Round and square pallet feet are supplied ready to weld, suitable as stillage feet for all pallets. Our steel stillage feet have many shapes and sizes, designed to fit common pallet legs as stable support for box or angle pallets. As an experienced pallet feet manufacturer, Kirmell supplies feet up to 186mm base with or without pre-cut holes, in the widest range of shapes on the market.
| Product Code | Height (mm) | Bottom (mm) | Top (mm) | Dimension Diagram | Request Quote |
|---|---|---|---|---|---|
| KPF1A | 54 | 127 x 127 | 56 x 56 | View Dimensions | |
| KPF1C | 51 | 127 x 127 | 64 x 64 | View Dimensions | |
| KPF2 | 51 | 165 x 165 | 76 x 76 | View Dimensions | |
| KPF3 | 38 | 89 x 89 | 48 x 48 | View Dimensions | |
| KPF55 | 33 | 42 x 42 | 30 x 30 | View Dimensions | |
| KPF61 | View Dimensions | ||||
| KPF7 | 62 | 121 Diam | View Dimensions | ||
| KPF11 | 38 | 76 x 76 | 47 x 47 | View Dimensions | |

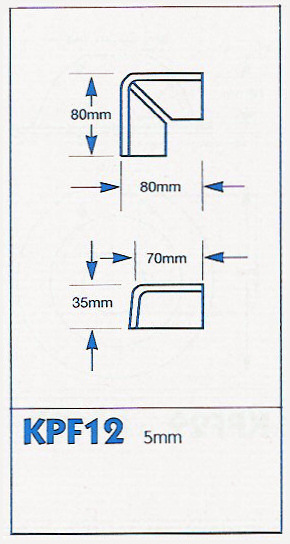

| KPF12 | View Dimensions | ||||
| KPF13 | View Dimensions | ||||
| KPF15 | 51 | 95 Diam | View Dimensions | ||
| KPF16 | 51 | 102 x 102 | 51 x 51 | View Dimensions | |
| KPF17 | 67 | 165 Diam | 73 Diam | View Dimensions | |
| KPF18 | 82 | 165 Diam | View Dimensions | ||
| KPF19 | 54 | 108 x 108 | 56 x 56 | View Dimensions | |
| KPF22 | 38 | View Dimensions | |||
| KPF23 | 38 | 105 x 105 | 51 x 51 | View Dimensions | |
| KPF24 | 63 | 125 Diam | View Dimensions | ||
| KPF25 | 25 | 102 x 102 | View Dimensions | ||
| KPF29 | 66 | 171 Diam | 60 Diam | View Dimensions | |

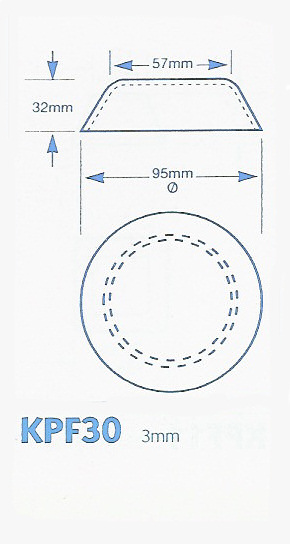

| KPF30 | 32 | 95 Diam | 57 Diam | View Dimensions | |
| KPF31 | 51 | 152 x 152 | 90 x 90 | View Dimensions | |
| KPF33 | 25 | 102 x 102 | View Dimensions | ||
| KPF34 | 25 | 102 x 102 | View Dimensions | ||
| KPF35 | 63 | 121 Diam | 51 Diam | View Dimensions | |
| KPF37 | 51 | 186 x 186 | 51 x 51 | View Dimensions | |
| KPF38 | 51 | 102 x 102 | View Dimensions | ||
| KPF39 | 53 | 127 Diam | 38 Diam | View Dimensions | |
| KPF41L | 50 | 95 | 63 | View Dimensions | |
| KPF41S | 50 | 70 x 70 | 44 | View Dimensions | |
| KPF42 | 50 | 111 x 111 | 63 x 63 | View Dimensions | |
| KPF42 G | 110 | 50 | View Dimensions | ||
| KPF43 | 44 | 110 x 110 | 76 x 76 | View Dimensions | |
| KPF44 | 54 | 140 x 140 | 63 x 63 | View Dimensions | |
| KPF45 | 47 | 120 Diam | 50 Diam | View Dimensions | |
| KPF46 | 63 | 133 x 133 | 67 x 67 | View Dimensions | |
| KPF48 | 50 | 108 x 108 | 56 x 56 | View Dimensions | |
| KPF50 | 56 | 124 Diam | 63 | View Dimensions | |
| KPF52 | 42 | 102 x 102 | 56 | View Dimensions | |
| KPF57 | 38 | 70 x 70 | 50 | View Dimensions | |
| KPF60 | 50 | 100 x 100 | 50 x 50 | View Dimensions | |

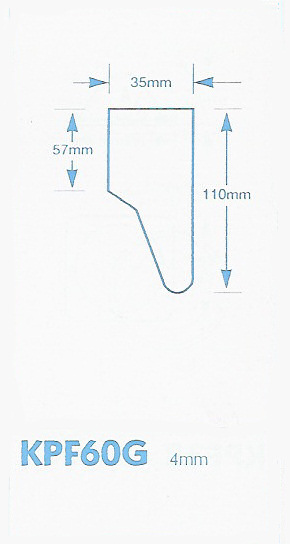

| KPF60G | 110 | 35 | View Dimensions | ||
| KPF60G2 | 120 | 38 | View Dimensions | ||
| KPF62 | 40 | 90 x 90 | 60 | View Dimensions | |
| KPF63 | n/a | ||||
| KPF64 | 100 +-0.5 | View Dimensions | |||
| KPF65 | 100 | View Dimensions | |||

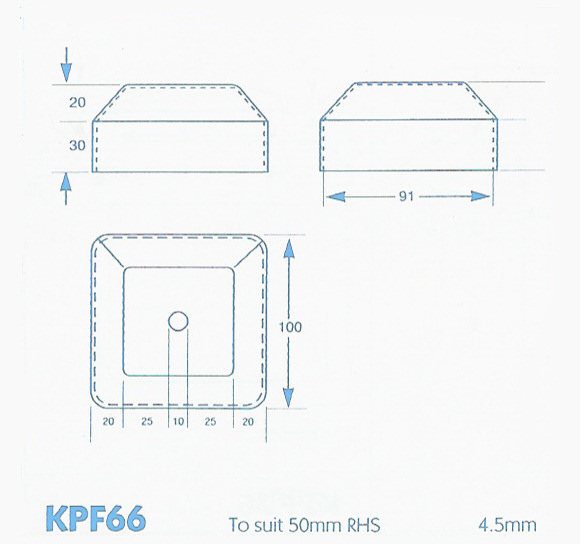

| KPF66 | 100 | View Dimensions | |||
| KPF68 | 20 | 57 x 57 | 30 x 30 | View Dimensions | |
| KPF69 | 15 | 44.6 x 44.6 | 22 x 30 | View Dimensions | |
| KPF72 | 50 | 108 x 108 | 65 x 65 | View Dimensions | |
| KPF72G | 65 | 80 | View Dimensions | ||
| KPF72L | 18 | 60 Diam | 20 Diam | View Dimensions | |
| KPF74 | 50 | 80 x 80 | 55 x 55 | View Dimensions | |
| KPF76 | n/a | ||||
| KPF78 | View Dimensions | ||||
| KPF80 | View Dimensions | ||||
| KPF82 | 40 | 60 x 60 | 44 | View Dimensions | |
| KPF84 | 50 | 118 x 118 | 65 x 65 | View Dimensions | |
| KPF86 | View Dimensions | ||||
| KPF108 | 50 | 80 x 80 | 55 x 55 | View Dimensions | |
| KPF5 | 38 | 52 x 52 | 32 x 32 | View Dimensions |
